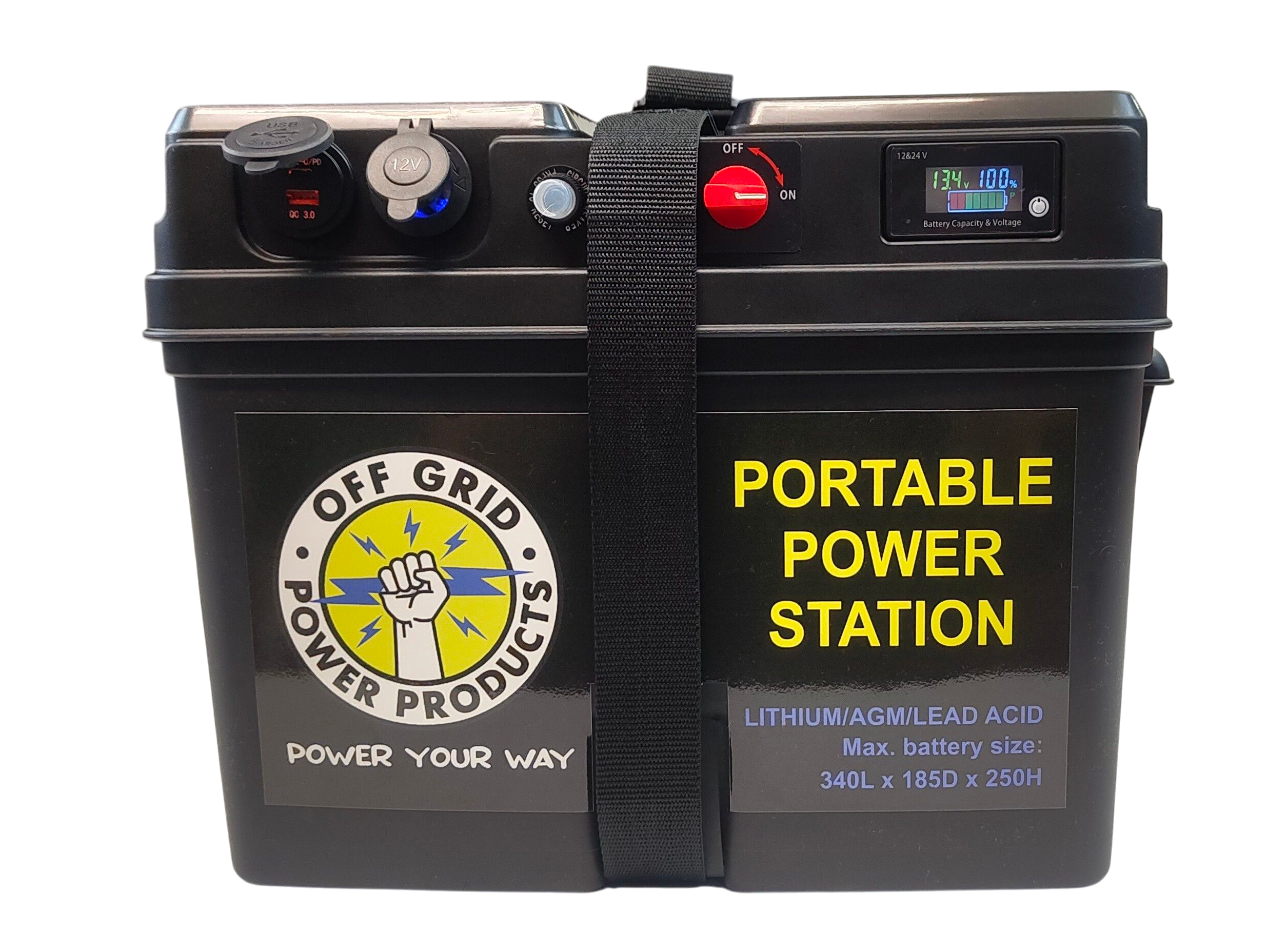

⚡ PORTABLE POWER STATION – BUILT TO PERFORM ⚡

Take your 12V power anywhere with our rugged Battery Box Power Station – perfect for lithium, AGM, or lead-acid batteries.

Whether you’re heading off-grid, camping, 4WDing, or just need reliable portable power – this box has you covered. 💪

✅ On/Off Master Switch

✅ Circuit Breaker & Internal Fuses

✅ USB QC3.0 + Type C/PD Fast Charging

✅ Battery Capacity & Voltage Gauge

✅ 2 x Heavy-Duty 50A Anderson Plugs

✅ Strong, Reliable Connectors

📏 External: 400W x 230D x 295H mm

📦 Internal: 345W x 195D x 230H mm

👉 Built tough for Aussie conditions.

👉 Just add your battery and go.

Available in 20A, 30A & 40A Models

Our DC-DC Chargers with integrated MPPT solar charging are designed to deliver reliable, efficient charging for modern Lithium LiFePO₄ and lead-acid battery systems. Carefully selected and supported by a Local & Family Owned Australian business, these chargers are proven performers in real touring and off-grid conditions.

Available in 20A, 30A, or 40A, they’re ideal for cars, 4WDs, caravans, campers, trailers, and mobile power systems.

Quick Specs

• Product Type: DC-DC Charger with Built-In MPPT Solar Controller

• Charge Ratings: 20A / 30A / 40A (model dependent)

• Battery Compatibility: Lithium LiFePO₄ / Lead Acid / Gel / AGM / Calcium

• Solar Charging: Integrated MPPT controller

• Input Sources: Vehicle alternator & solar

• Smart Alternator Support: Yes (ACC trigger via small blue wire)

• Dimensions: 208mm (L) × 137mm (W) × 40mm (H)

• Mounting Hole Centres: 110mm (lengthways) × 130mm (sideways)

• Weight: 4kg

• Connections: Anderson plugs optional

• Anderson Plug Colours (if fitted):

– Blue: Solar Input

– Red: Alternator / Vehicle Input

– Grey: Battery Output

• Local Support: Supplied, supported, and system-matched in Australia

Smart Charging from Alternator & Solar

With a built-in MPPT solar charge controller, there’s no need for separate solar hardware. The charger intelligently manages both vehicle and solar inputs to ensure your battery receives the correct charge profile every time.

Fully compatible with standard and smart alternators, using a simple ACC trigger wire when required.

Flexible Install, Clean Wiring

These chargers can be supplied with or without Anderson plugs, allowing you to tailor the install to your setup.

When Anderson plugs are fitted, the colour-coded layout keeps everything clean and easy to identify:

Blue – Solar input

Red – Alternator / vehicle input

Grey – Output to battery

Simple to install, simple to fault-find.

Built for Touring & Off-Grid Use

• Compact, low-profile metal housing

• Integrated MPPT solar charging

• Multi-chemistry battery support

• Smart alternator compatible

• Optional Anderson plug wiring

• Proven pairing with OFF GRID POWER PRODUCTS Lithium LiFePO₄ battery systems

Perfect For:

• Cars and 4WD dual battery systems

• Canopy and tray setups

• Caravans and campers

• Touring and off-grid power systems

• Solar-assisted battery charging

Why Choose OFF GRID POWER PRODUCTS?

We focus on complete, reliable power systems, not just individual components. These DC-DC chargers are carefully selected, tested, and supported locally to ensure they work seamlessly with our locally built Lithium LiFePO₄ batteries and wiring systems.

As a Local & Family Owned Australian business, you get real advice, proper system matching, and ongoing support — before and after the sale.

OFF GRID POWER PRODUCTS

POWER YOUR WAY

240V Power for Off-Grid Systems

OFF GRID POWER PRODUCTS Lithium Power Inverters are designed to work seamlessly with Lithium LiFePO₄ battery systems, including our locally manufactured batteries, while remaining fully compatible with other suitable lithium setups.

As a Local, Family Owned Australian business, we only offer equipment we trust to perform in real-world conditions — delivering dependable, efficient power for cars, 4WDs, caravans, trailers, homes, and off-grid applications.

Available Models

12V Inverters

• 1500W — includes 1.2m 25mm² power cables

• 2000W — includes 1.2m 50mm² power cables

• 3000W — includes 1.2m 70mm² power cables

24V Inverter

• 3500W — includes 1.2m 35mm² power cables

48V Inverter

• 3500W — includes 1.2m 16mm² power cables

Key Features

• Designed for Lithium LiFePO₄ systems

• M8 stud battery input terminals for secure, high-current connections

• Supplied with CORRECTLY sized power cables for each model

• Remote monitoring screen with integrated power ON/OFF switch

• 230V / 50Hz AC output

• 100% continuous rated output

• 145% surge capacity for up to 10 seconds

• Over 145% for 2 seconds

• 90% efficiency

• 1-year warranty

Electrical Specifications

Input Voltage Range

• 12V models: 10.5V – 15V

• 24V models: 20V – 30V

• 48V models: 40V – 60V

Output

• 230V AC / 50Hz

Ideal For

• Cars and 4WDs

• Caravans and campers

• Trailers

• Off-grid homes

• Backup power systems

Why Choose OFF GRID POWER PRODUCTS?

•Local & Family Owned

• Specialising in Lithium LiFePO₄ power solutions

• Batteries manufactured locally

• Proven compatibility across complete off-grid systems

• Real support from people who use the gear themselves

Our 240V LiFePO₄ wall chargers are designed to deliver fast, safe, and reliable charging for lithium battery systems. Built to perfectly support OFF GRID POWER PRODUCTS LiFePO₄ batteries, they are also compatible with any suitable lithium battery that matches the selected charger’s specifications.

Each charger is housed in a durable metal case to aid heat dissipation and long-term reliability. A 50A Red Anderson plug provides a secure, quick-disconnect connection, making these chargers ideal for home, workshop, and off-grid charging applications.

With multiple voltage and current options available, simply select the charger that matches your battery system.

Key Features

• Designed for LiFePO₄ batteries

• Made to suit OFF GRID POWER PRODUCTS batteries

• Compatible with other suitable lithium batteries

• Robust metal case for improved heat dissipation

• 50A Red Anderson plug for easy connection

• Multiple output options available (select variant)

Electrical Specifications

• Input Voltage: 220V – 245V AC

• Output: Product-specific (varies by model)

• Charge Voltage: Product-specific (varies by model)

Dimensions

All 10A models: 193mm (L) x 86mm (W) x 54mm (H)

All 30A models: 213mm (L) x 129mm (W) x 77mm (H)

Suitable for use in cars, 4WDs, caravans, trailers, homes, and off-grid power systems. Always ensure the selected charger matches your battery’s required voltage and charge profile.
